XClutch Stage 1 Organic Clutch Kit STI 6MT

THE XCLUTCH DIFFERENCE

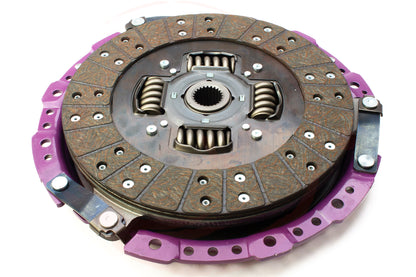

The XClutch stage 1 clutch uses a high temperature organic friction material, heavy duty sprung center hub, and uprated pressure plate. Provides smooth clutch engagement while supporting increased torque output and heavy duty use when compared to the stock clutch. Available in standard HD or XHD (Extra Heavy Duty) pressure plate options depending on the torque capacity requirements.  The standard HD version supports 430 ft-lb while the XHD version supports 510 ft-lb but increases the pedal effort due to the high spring forces involved.

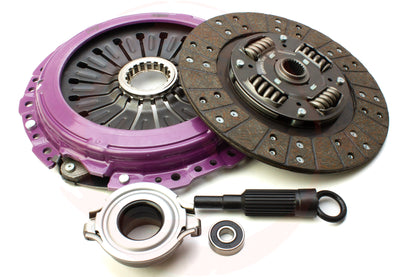

This clutch kit includes a release bearing, pilot bearing, and clutch alignment tool.

Manufacturer Part Nos.: XKSU24001-1A, SXSU24001-1AX (XHD)

Clutch Specifications:

• Clutch Disc Diameter: 240mm
• Number of Discs: 1
• Disc Material: High Temperature Organic
• Disc Hub Type: Sprung

• PP Engagement Direction: Pull
• Torque Capacity: 430 ft-lb (510 ft-lb XHD)

What it fits:

• STI MY01-21 (6MT TY856)
• Legacy Spec B MY07-09 (6MT TY856) ... Requires STI Flywheel
• Forester STI MY04-07 (6MT TY856) ... Requires STI Flywheel
