Transfer Driven Rear Roller Bearing MT TY75 MY01+

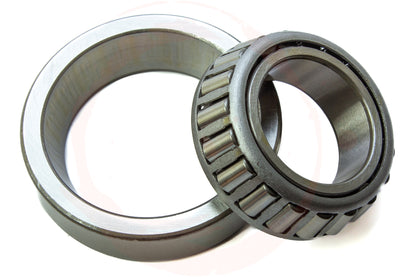

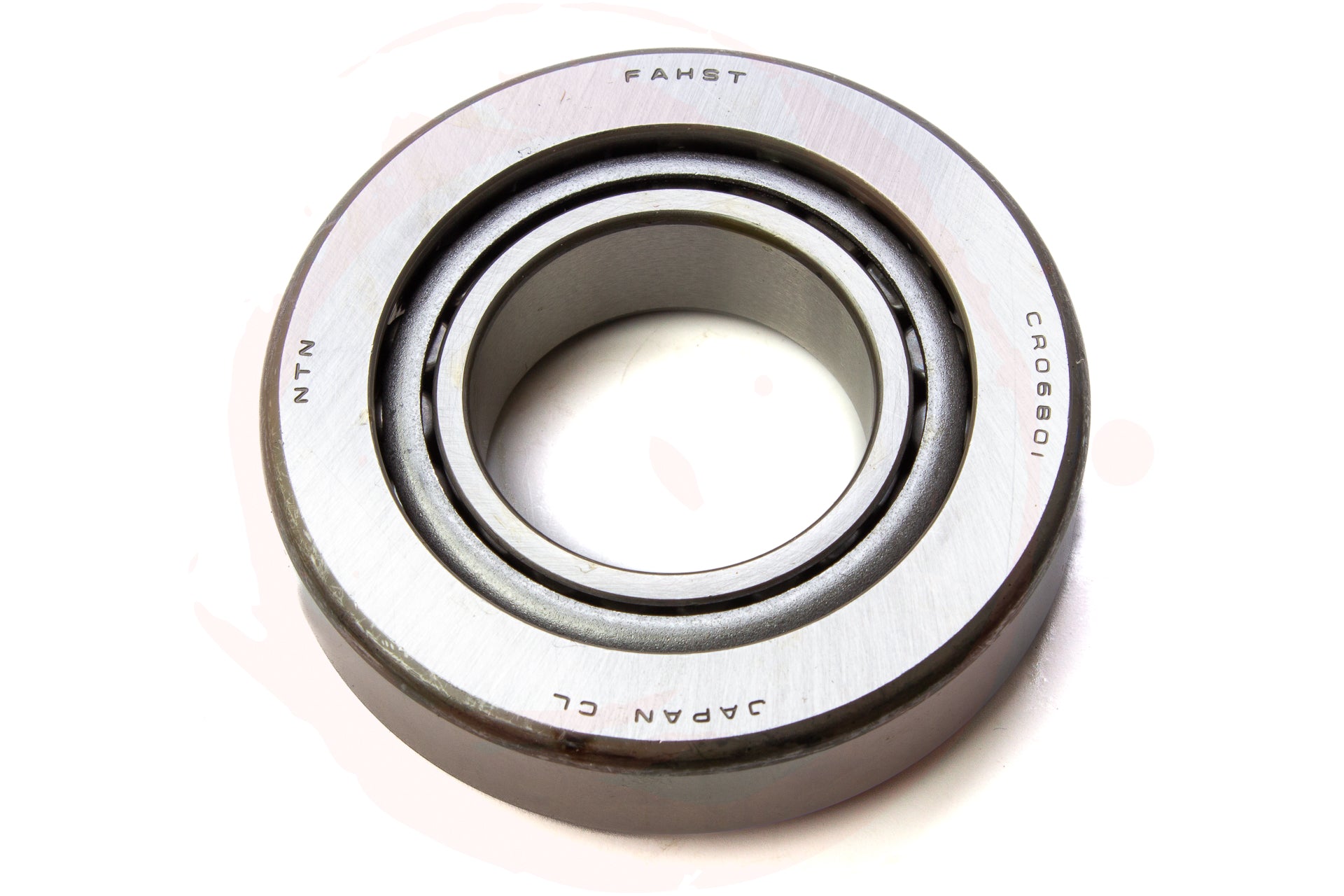

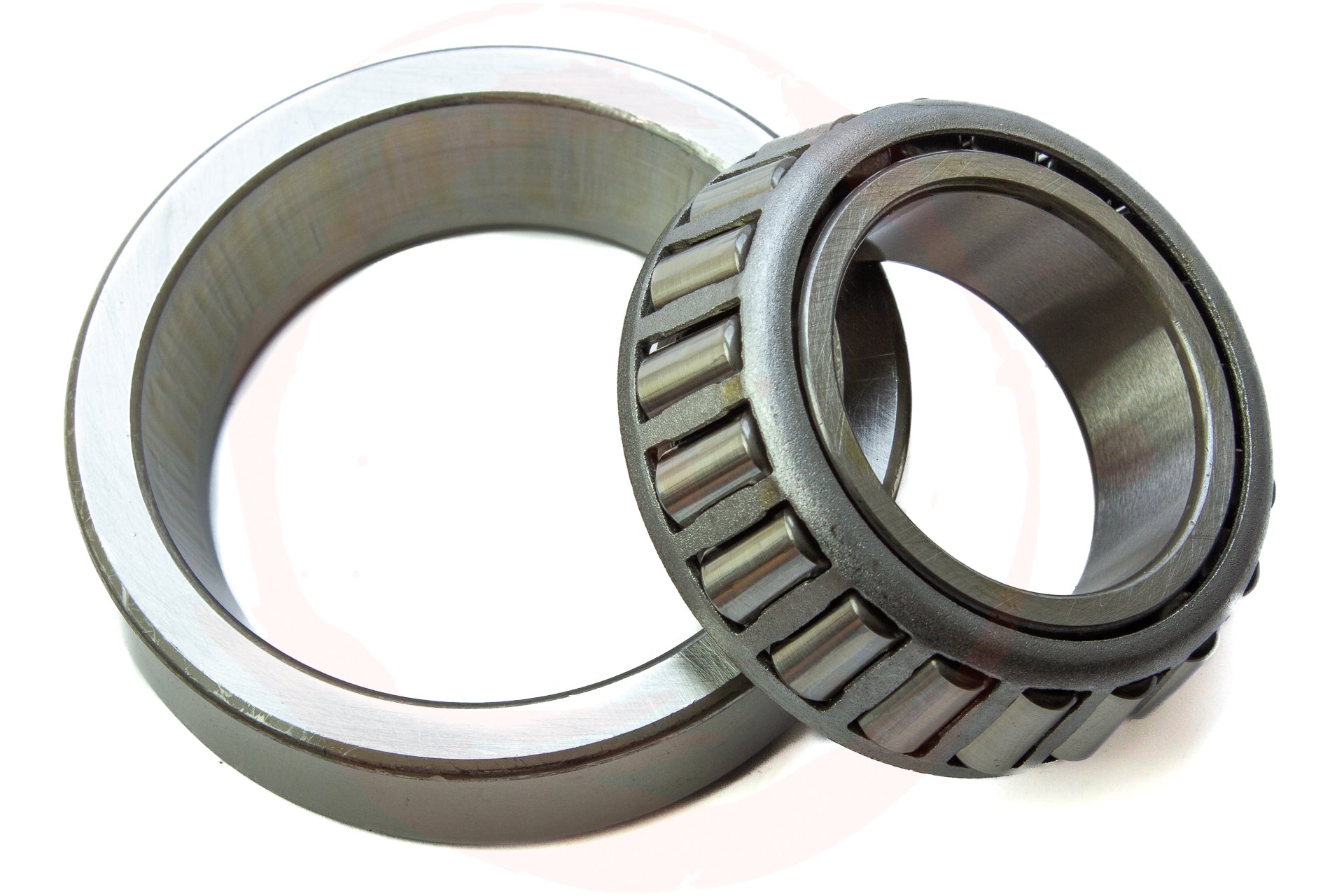

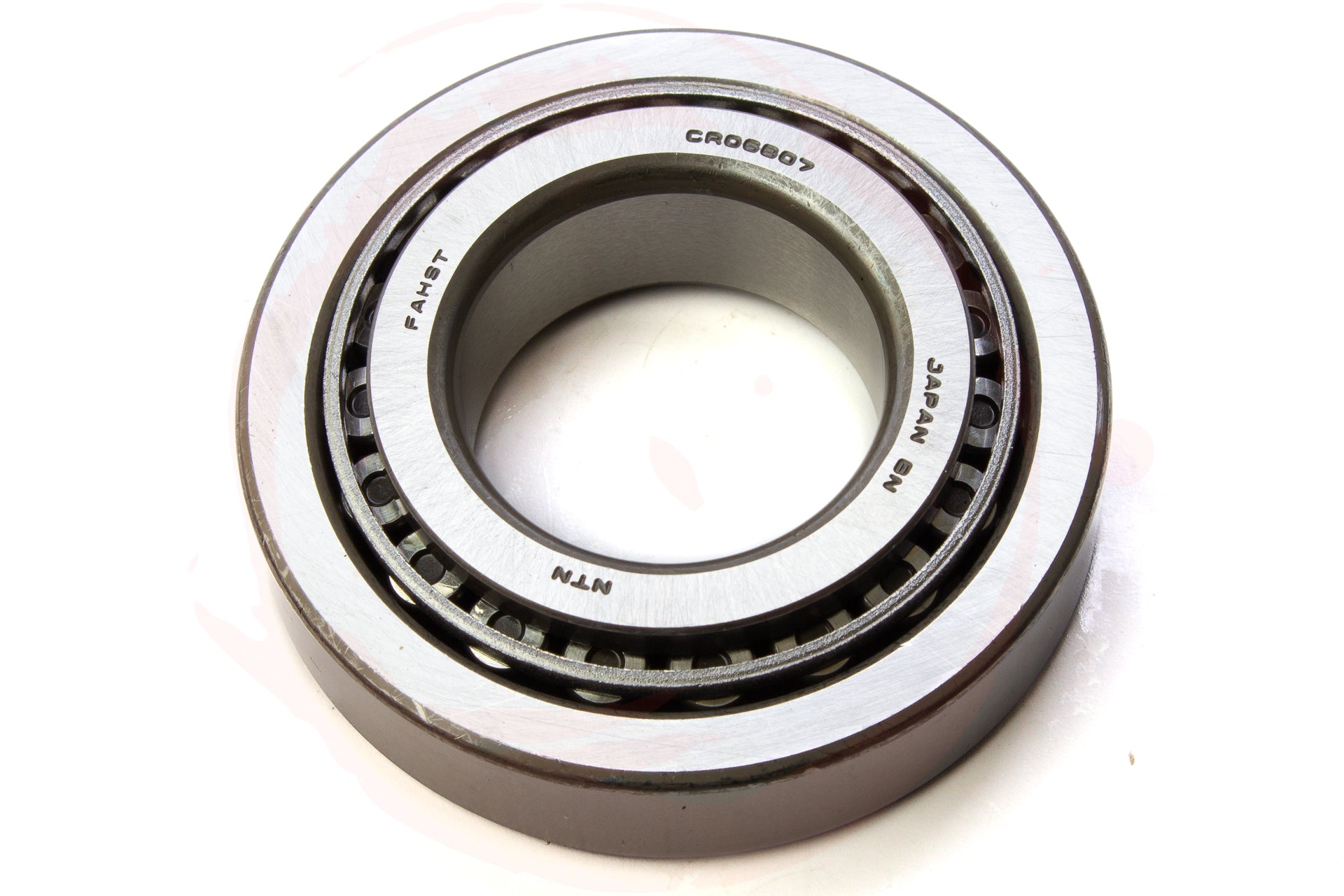

Tapered roller bearing with dimensions 30 x 62 x 17mm for rear end of transfer driven gear (output shaft).  Includes both bearing and race.  For 5MT applications after 04/2000 and cable shifted 6MT (transmission codes starting in TY75).  Earlier applications use a one-piece radial ball bearing.

Always replace if the bearing feels rough or is noisy.  This bearing cone presses on to the transfer driven gear shaft at the splined end.  The race slips into the extension housing and may be a slight interference fit requiring light heating of the housing.  A shim between the bearing race and extension housing adjusts the end play of the transfer driven gear.

Manufacturer Part No: 806330120

What it fits:

• WRX MT 04/00+
• Impreza MT 04/00 - MY23
• Legacy/Outback MT 04/00 - MY14
• Forester MT 04/00 - MY18
• Crosstrek MT MY13-23
• Baja MT
