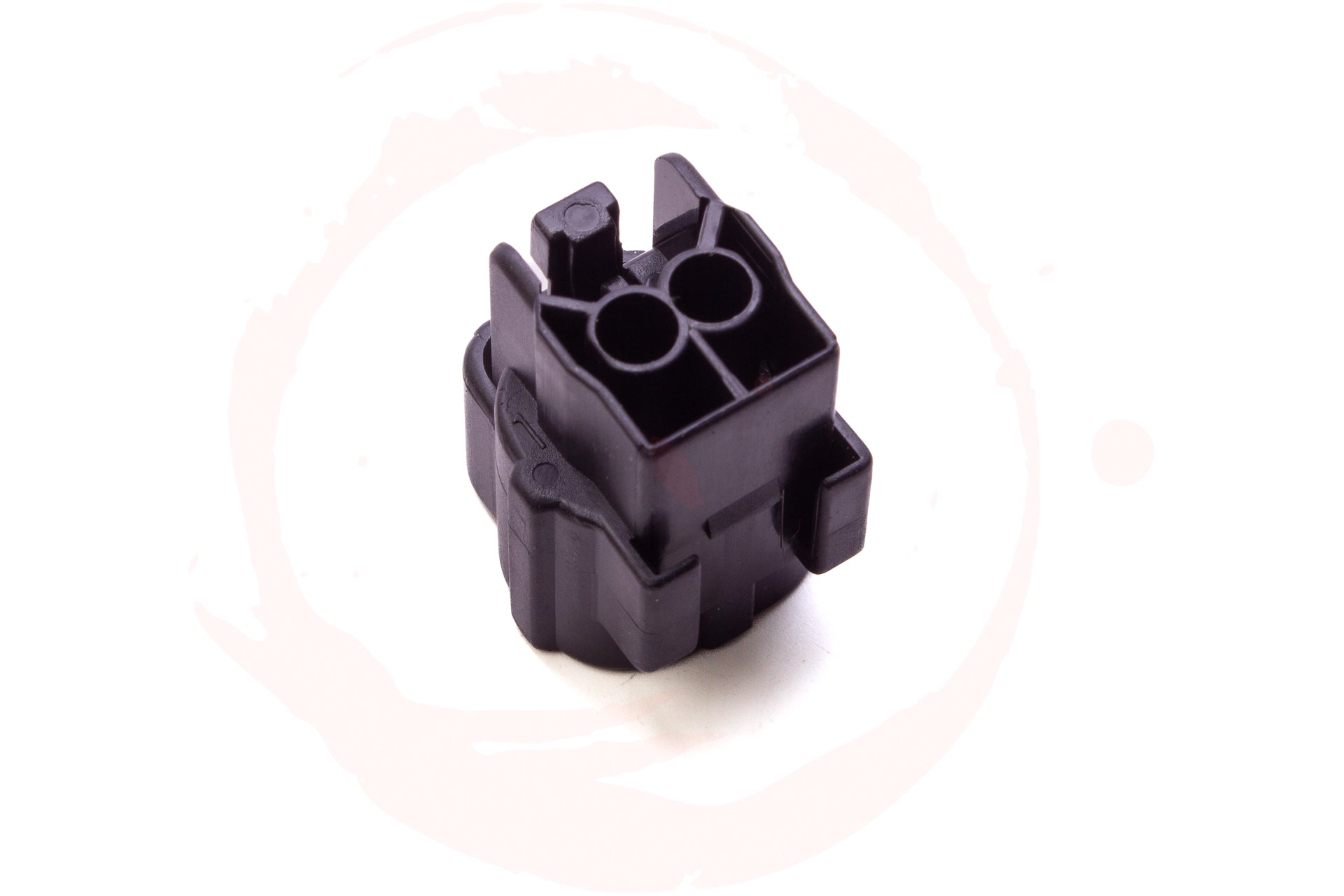

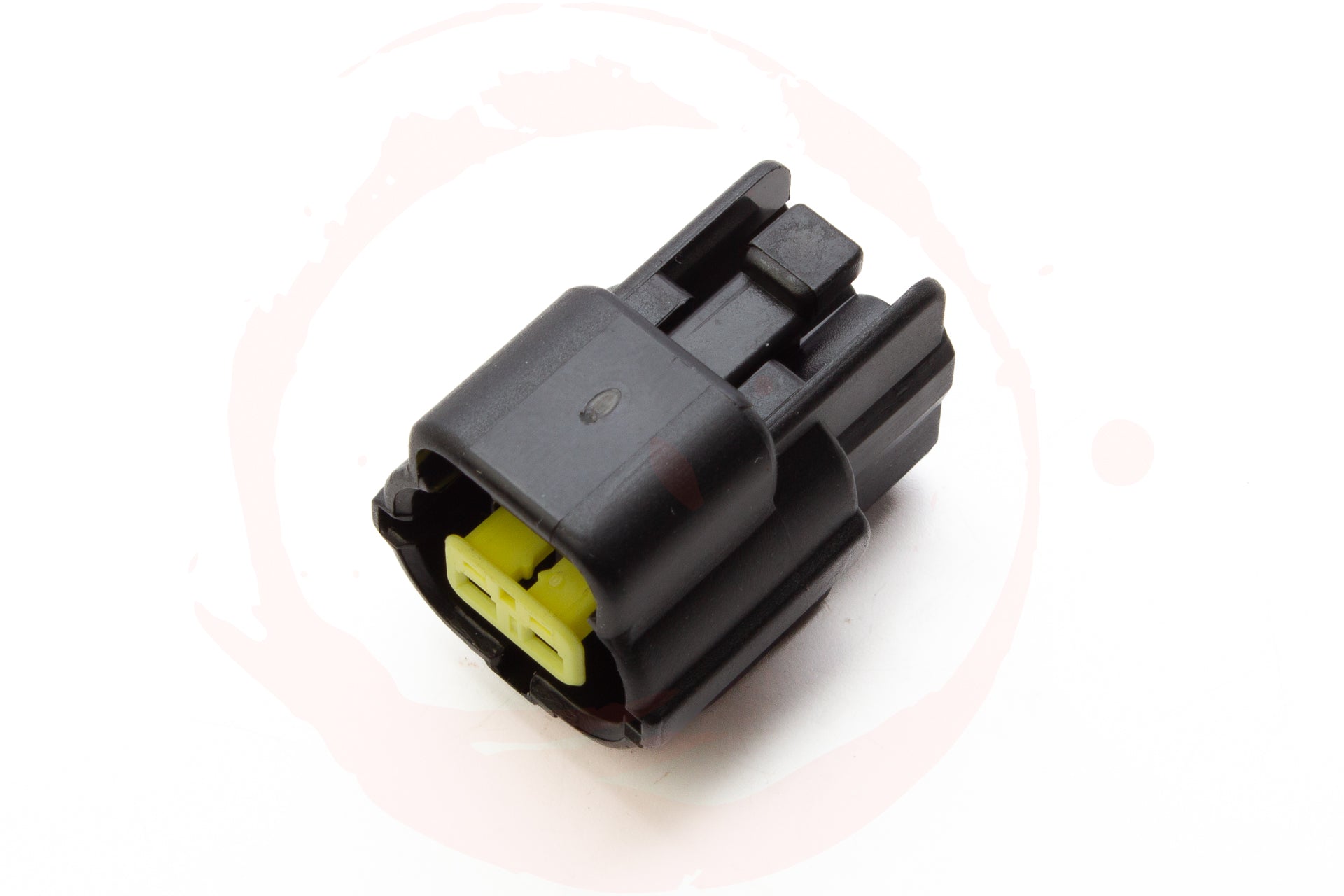

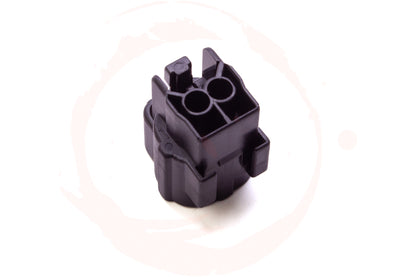

Solenoid/Temperature Sensor Connector Kit
2-PIN FEMALE CONNECTOR

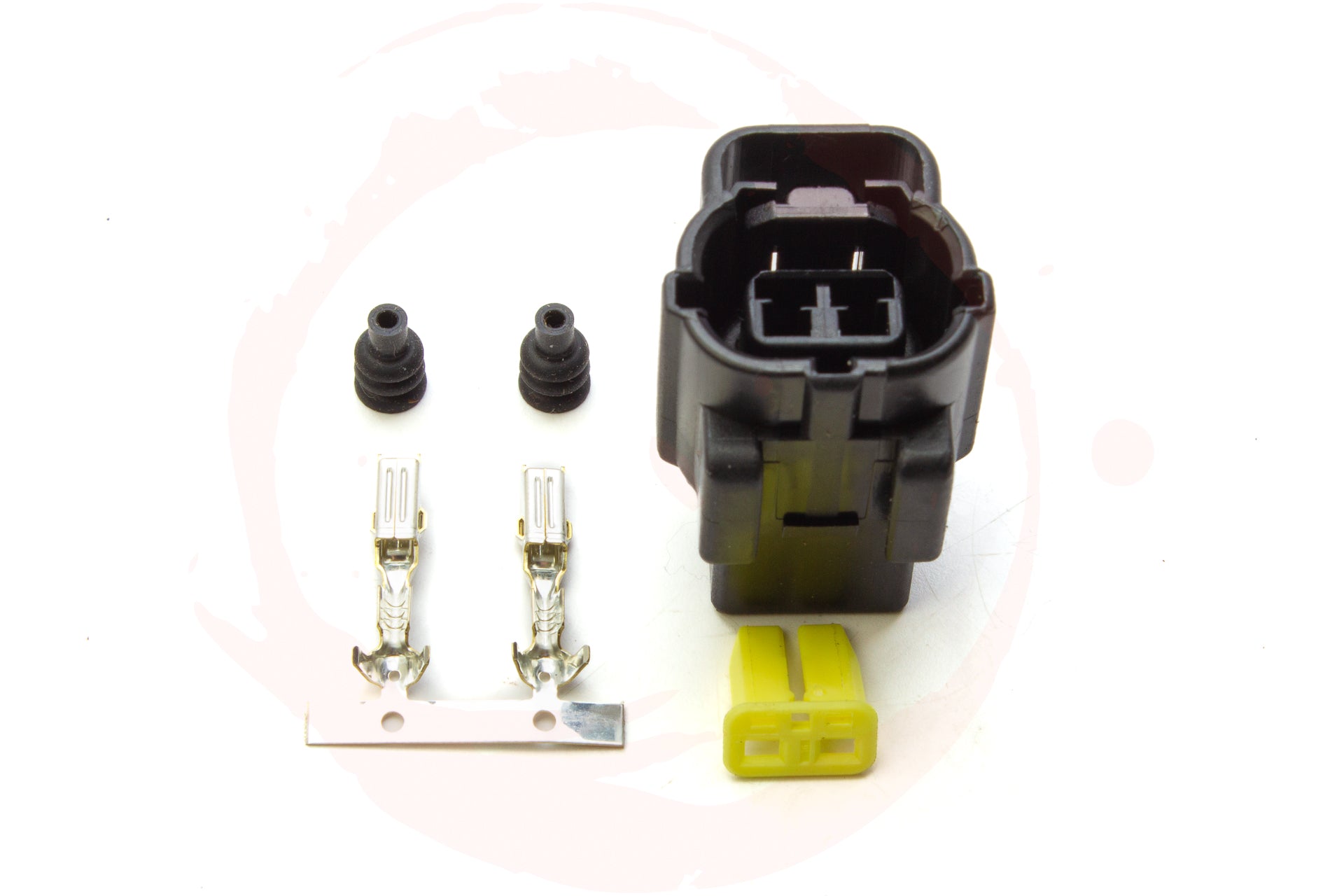

Replacement connector kit includes connector housing, terminals, terminal retention lock, and wire seals for end user crimping and assembly. Optional pigtail version is pre-installed on to 8in long wire leads (wire colors are black). A male connector kit is available by special order (contact us).
This is a 2-pin connector used for the coolant temp sensor on certain applications as well as EVAP solenoids and the JDM EJ207 AIT (air intake temp) sensor in the manifold. Terminals supplied fit 20-16awg wire. Optional smaller terminal size of 24-20awg can be supplied on request. Wire seals supplied fit 1.4 to 2.4mm insulation diameter. Optional wire seals to fit 2.0 to 2.6mm wire insulation can be supplied on request.
What it fits:
- 2-pin Coolant Temp Sensors MY05-13
- Manifold Air Temp Sensor EJ207 MY03-20 (+ MY02 Spec C)
- Purge Control & Other Solenoids
