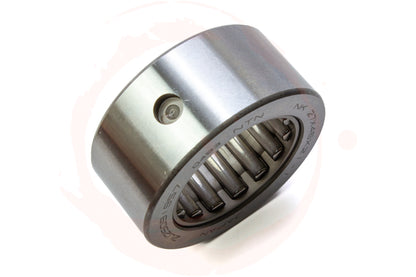

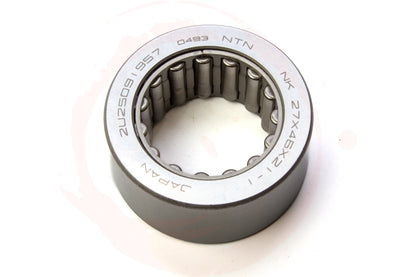

Main Shaft Front Support Needle Bearing MT (TY75)

Needle roller bearing with dimensions 27 x 46 x 21mm.  Supports the front of the main (input) shaft between the clutch splines and the 1st gear.  For 5MT and cable shifted 6MT gearboxes (transmissions with codes starting TY75).

Always replace if the bearing feels rough or is noisy or shows signs of high temperatures or other damage.  This bearing is not a press fit.  It installs on main shaft just in front of the 1st gear.  A locating hole in the outer race must be aligned with a metal pin in the transmission case housing bore otherwise damage to the case and the bearing will occur when the case halves are bolted together.

Manufacturer Part No: 806427060

What it fits:

• WRX MT MY93-26
• STI MY93-00
• Impreza MT MY93-23
• Forester MT MY98-18
• Legacy/Outback MT MY89-14

• Baja 5MT MY03-06
• Crosstrek MT MY13-23
• RX MT MY85-89
• XT MT MY85-87
• RS MT MY85-89
