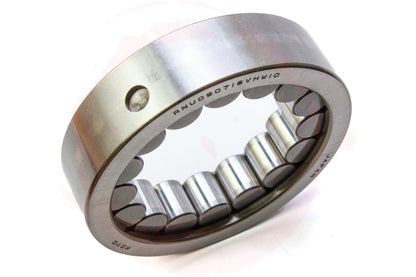

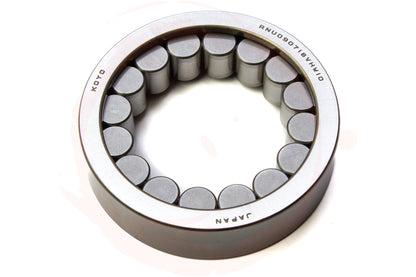

Front Pinion Roller Bearing MT (TY75)

Cylindrical roller bearing supports the front pinion and driven (output shaft) within the transmission case.  Used for both 5MT and cable shifted 6MT (transmissions starting with codes TY75).

Always replace if the bearing feels rough or is noisy or shows signs of high temperatures or other damage.  This bearing is not a press fit.  It installs on to the front pinion between the pinion head and the driven shaft.  A locating hole in the outer race must be aligned with a metal pin in the transmission case housing bore otherwise damage to the case and the bearing will occur.

Manufacturer Part No: 806342010

What it fits:

• WRX MT MY93-26
• STI MY93-00
• Impreza MT MY93-23
• Forester MT MY98-18
• Legacy/Outback MT MY89-14

• Baja 5MT MY03-06
• Crosstrek MT MY13-23
• RX MT MY85-89
• XT MT MY85-87
• RS MT MY85-89
